Field testing setup

Reference sensor

In order to test low-cost monitoring system in the field, one pond of the Burnley campus of the University of Melbourne has been equipped with a reference sensor.

The sensor used is a brand new PLS sensor from OTT. The sensor measure water depth and can communicate using SDI-12 communication protocol. The sensor is expected to have an accuracy of 1 mm and has proven its reliability over many years of field monitoring. The probe provide also the water temperature.

PLS_OTT_mounted

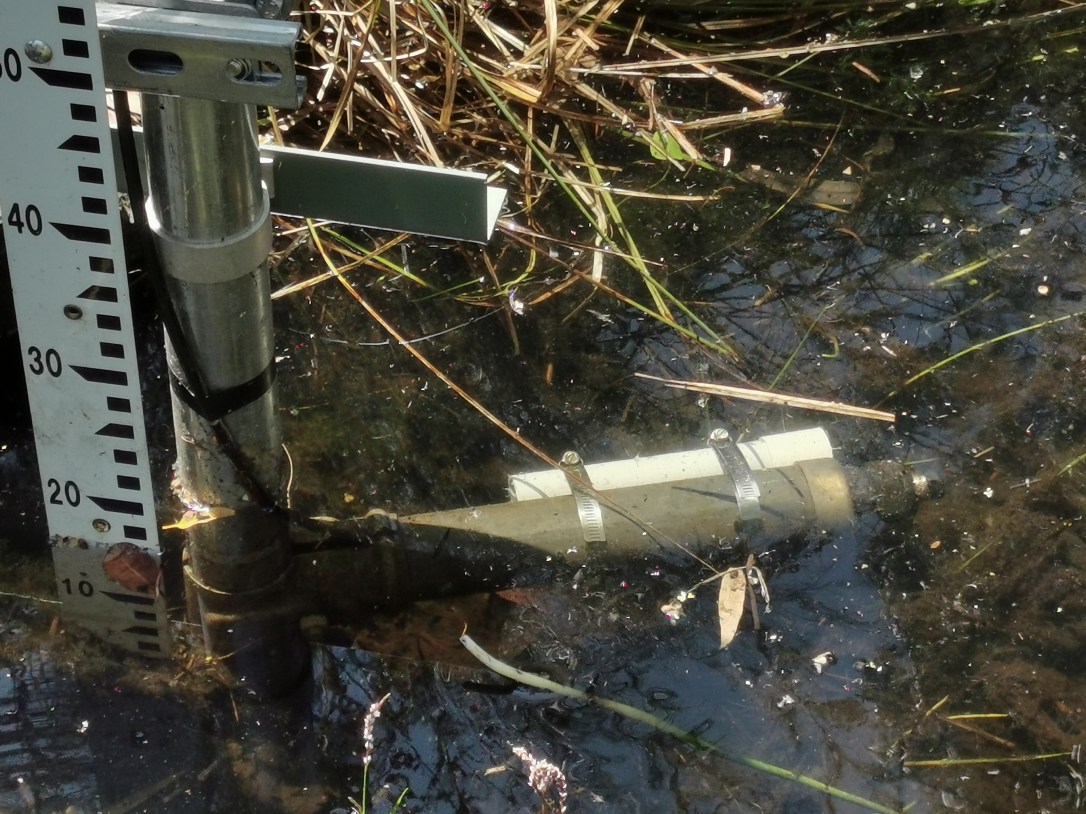

PLS sensor from OTT mounted in a cable gland and attached to a pole.

Data logger

The Data logger is a MKR 1300 LoRa board coded in C++ using the Arduino IDE. Every five minutes the water depth and temperature is measure, an offset (constant) is applied to the water depth in order to obtain the water level.

bsh

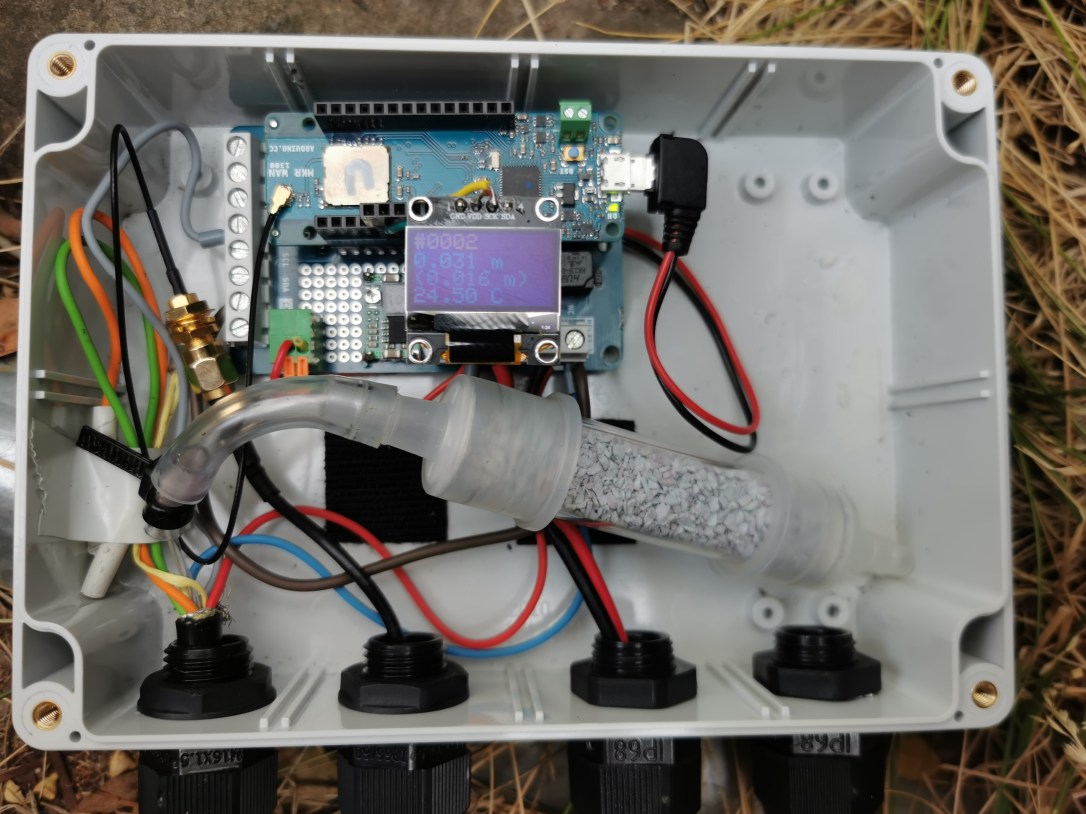

Burnley pond data logger with a MKR 1300, a MKR relay shield and a OLED screen

The OLED screen always display the last measure values and allows to easily check on the gauge that the value is correct.

bsh

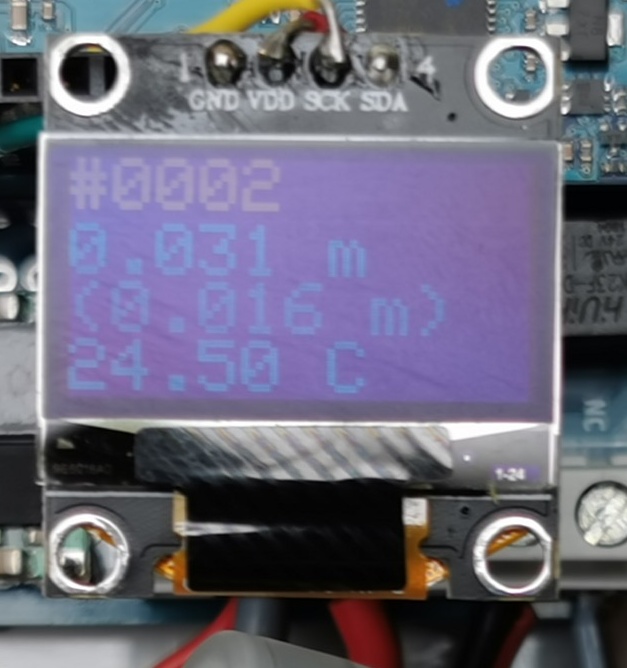

OLED screen to display the last measurement: measurement number, water level, water depth and water temperature

Both water level and temperature are sent through LoRaWAN to a google spreadsheet.

Online data

The data is then in real-time send from the google spreadsheet to the Mind4Stormwater online platform. Before sending the data, the google spreadsheet fetch the cumulated rainfall (since 9am) from the closest BOM (Bureau of Meteorology) station.

BottomPond_online

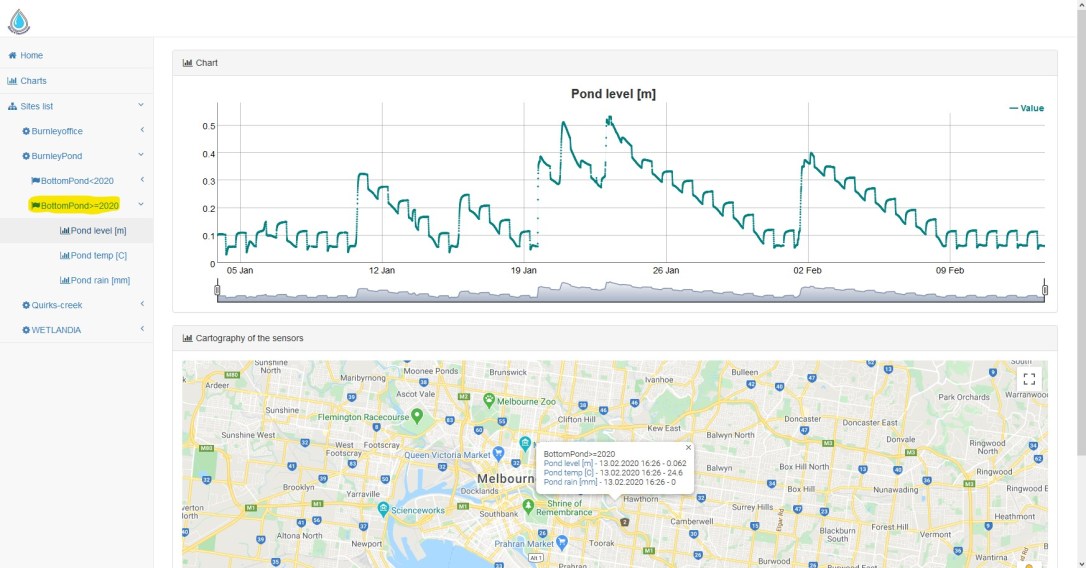

Online platform http://mind4stormwater.online with the plot in real-time of the water level, the water temperature and the daily cumulated rain.

Arduino code

The code is accessible on Github:
https://github.com/fcherqui/Mind4stormwater/tree/master/Burnley_pond
Using a MKR 1300 LoRaWAN board
